NovaStar CVT310
- 179 EUR
- Contact to negotiate price

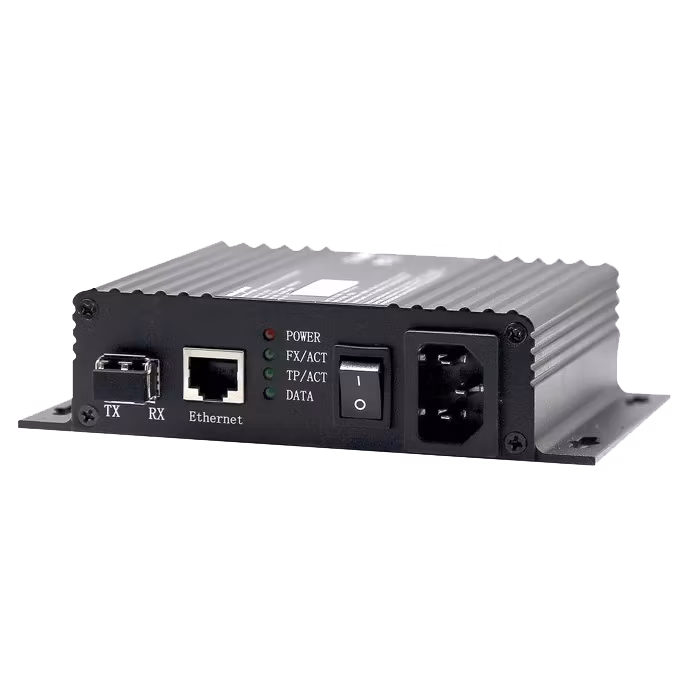

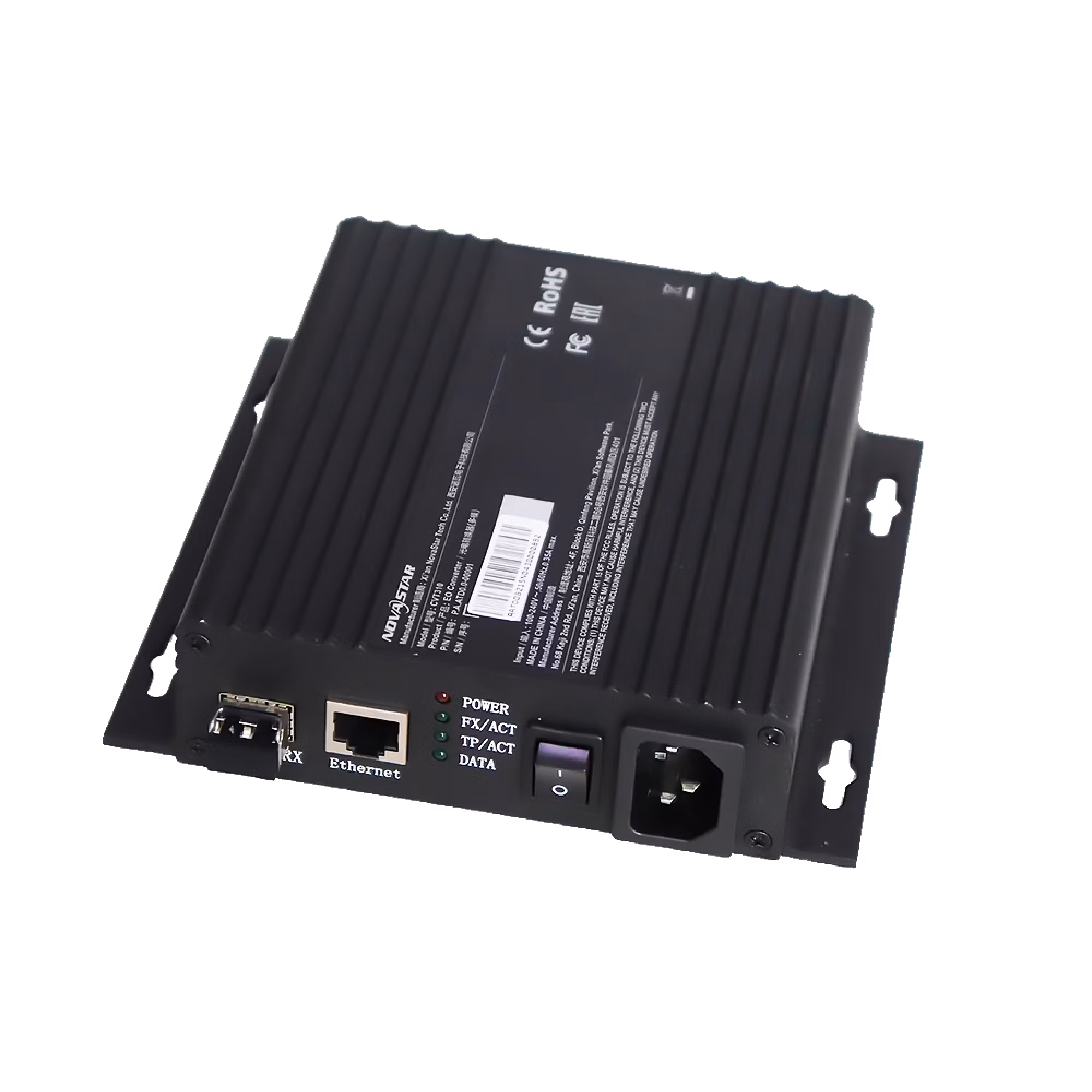

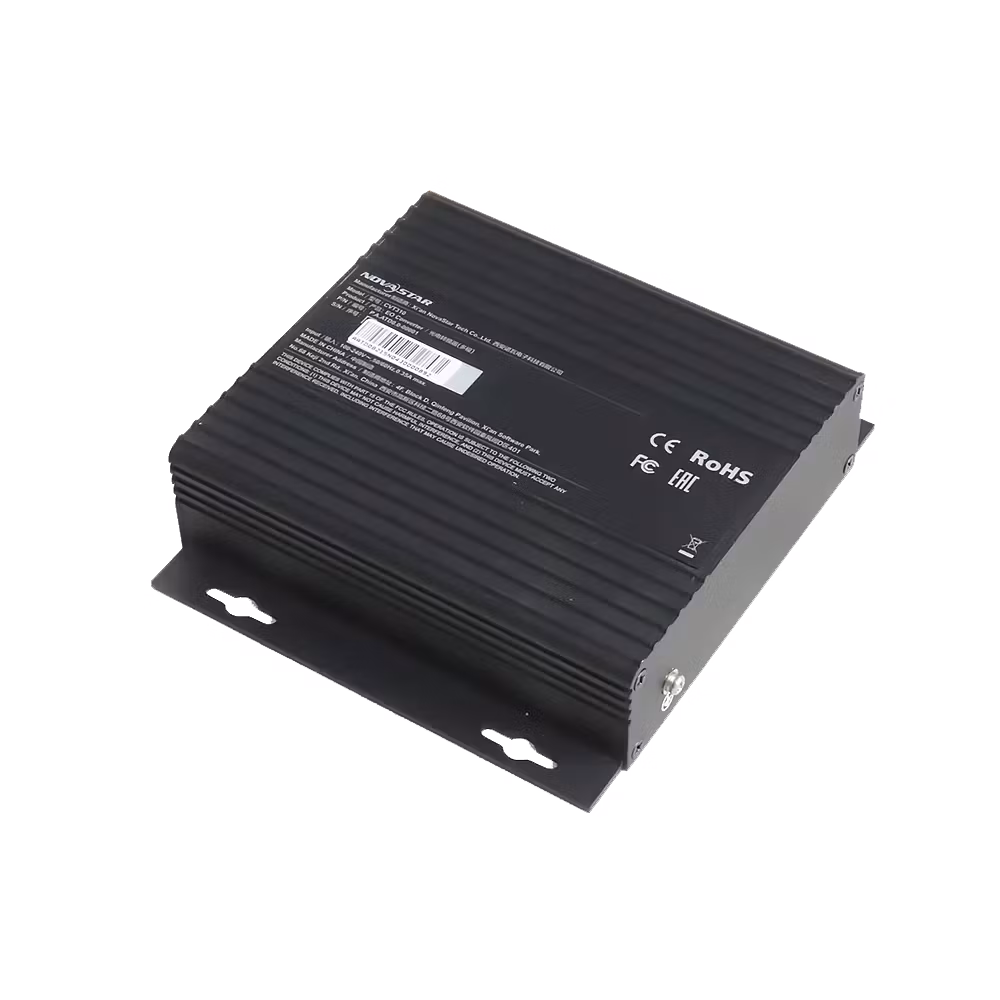

NovaStar CVT310 is a way of conversion between optical signals and electrical signals for video sources to connect the sending card to the LED display.
Free delivery from Sweden
Shipped next business day
No Import Duties
Very few exceptions
High quality with EU warranty
For the best price on the market
Fast Support
Article Number:
N-78-200-10
Supplier:
NovaStar
NovaStar CVT310 fiber converter offers a way of conversion between optical signals and electrical signals for video sources to connect the sending card to the LED display. It is ready to use once connected, with no drivers required.
Key Features:
- 1x Gigabit Ethernet port
- 1x Multiple-mode twin-core LC optical port with an optical module installed at the factory
- Optical port: 1.25 Gb/s rate, 850 nm wavelength, up to 300 m transmission distance, hot pluggable
Certifications: KC, CE, RoHS, PSE, EAC, FCC, IC
NovaStar Fiber Converter Comparison
| Model | CVT310 | CVT320 | CVT10-S | CVT10-M | CVT10 Pro-S | CVT10 Pro-M | CVT4K-S | CVT4K-M |
| Optical module | Multi-mode | Single-mode | Single-mode | Multi-mode | Single-mode | Multi-mode | Single-mode | Multi-mode |
| Number of optical ports | 1 | 1 | 2 | 2 | 2 | 2 | 4 | 4 |
| Optical Fiber Bandwidth | 1.25G | 1.25G | 10G | 10G | 10G | 10G | 10G | 10G |
| Optical Fiber Backup | None | None | OPT1 Primary OPT2 Backup | OPT1 Primary OPT2 Backup | OPT1 Primary OPT2 Backup | OPT1 Primary OPT2 Backup | OPT1&2 Primary OPT3&4 Backup | OPT1&2 Primary OPT3&4 Backup |
| Optical fiber format | Multi-mode twin-core LC optical ports | Single-mode twin-core LC optical ports | Single-mode twin-core LC optical ports | Multi-mode twin-core LC optical ports | Single-mode twin-core LC optical ports | Multi-mode twin-core LC optical ports | Single-mode twin-core LC optical ports | Multi-mode twin-core LC optical ports |
| Number of network ports | 1 | 1 | 10 | 10 | 10 | 10 | 16 | 16 |
| Transmission distance | 300 Meters | 15 Km | 10 Km | 300 Meters | 10 Km | 300 Meters | 10 Km | 300 Meters |
| Network port format | Ethernet Gigabit ports | Ethernet Gigabit ports | Ethernet Gigabit ports | Ethernet Gigabit ports | Neutrik Ethernet Gigabit ports | Neutrik Ethernet Gigabit ports | Neutrik Ethernet Gigabit ports | Neutrik Ethernet Gigabit ports |
| Power Supply | 3-Pin Power Socket | 3-Pin Power Socket | PowerCON | PowerCON | PowerCON | PowerCON | PowerCON / 3-Pin Power Socket | PowerCON / 3-Pin Power Socket |
| Dual power supply backup | No | No | No | No | No | No | Yes | Yes |
| Control method | None | None | type-B USB | type-B USB | type-B USB | type-B USB | type-B USB / Ethernet | type-B USB / Ethernet |
| Number of SFP modules come with the device | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 2 |
