NovaStar CVT10-S
- 1 003 EUR
- Contact to negotiate price
NovaStar CVT10-S gives effective conversion between optical signals and electrical signals for video sources to connect the sending card to the LED display.
Free delivery from Sweden
Shipped next business day
No Import Duties
Very few exceptions
High quality with EU warranty
For the best price on the market
Fast Support
Stock:
14
Article Number:
N-78-200-21
Supplier:
NovaStar
NovaStar CVT10 fiber converter offers a cost-effective way of conversion between optical signals and electrical signals for video sources to connect the sending card to the LED display. Delivering a full-duplex, efficient and stable data transmission that is not easily interfered with, this converter is ideal for long-distance transmission.
The CVT10 hardware design focuses on the practicality and convenience of the on-site installation. It can be mounted horizontally, in a suspended way, or rack mounted, which is easy, secure and reliable. For rack mounting, two CVT10 devices, or one CVT10 device and a connecting piece can be combined into one assembly that is 1U in width.
CVT10-S is the single-mode version with a max distance of 10km
If you are looking for the multi-mode version, please see the CVT10-M product page.
Key Features

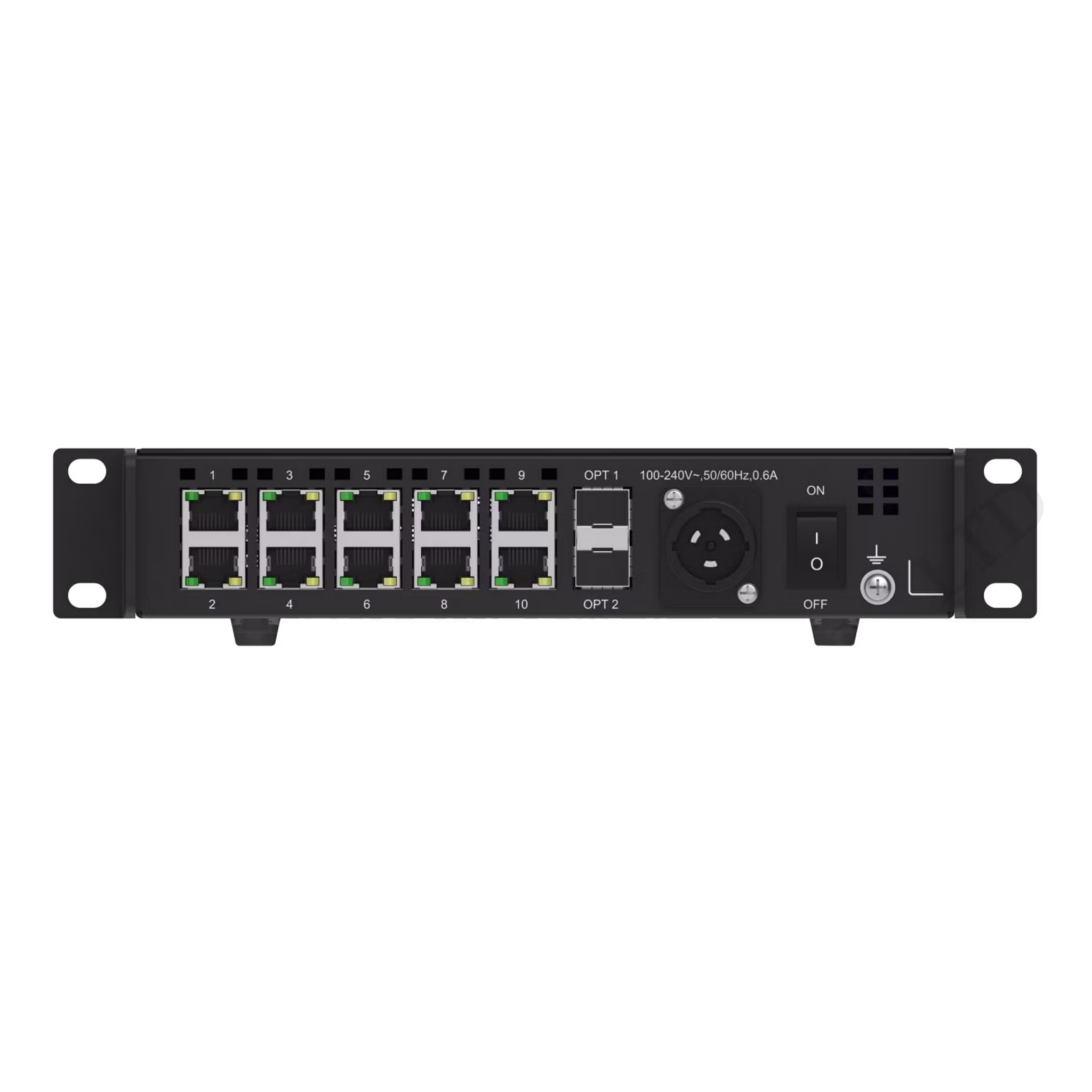

- 2x optical ports with hot-swappable optical modules installed at the factory, bandwidth of each up to 10 Gbit/s
- 10x Gigabit Ethernet ports, bandwidth of each up to 1 Gbit/s
- 1x type-B USB control port
Certifications: RoHS, FCC, CE, IC, RCM
NovaStar Fiber Converter Comparison
Model | CVT310 | CVT320 | CVT10-S | CVT10-M | CVT10 Pro-S | CVT10 Pro-M | CVT4K-S | CVT4K-M |
Optical module | Multi-mode | Single-mode | Single-mode | Multi-mode | Single-mode | Multi-mode | Single-mode | Multi-mode |
Number of optical ports | 1 | 1 | 2 | 2 | 2 | 2 | 4 | 4 |
Optical Fiber Bandwidth | 1.25G | 1.25G | 10G | 10G | 10G | 10G | 10G | 10G |
Optical Fiber Backup | None | None | OPT1 Primary OPT2 Backup | OPT1 Primary OPT2 Backup | OPT1 Primary OPT2 Backup | OPT1 Primary OPT2 Backup | OPT1&2 Primary OPT3&4 Backup | OPT1&2 Primary OPT3&4 Backup |
Optical fiber format | Multi-mode twin-core LC optical ports | Single-mode twin-core LC optical ports | Single-mode twin-core LC optical ports | Multi-mode twin-core LC optical ports | Single-mode twin-core LC optical ports | Multi-mode twin-core LC optical ports | Single-mode twin-core LC optical ports | Multi-mode twin-core LC optical ports |
Number of network ports | 1 | 1 | 10 | 10 | 10 | 10 | 16 | 16 |
Transmission distance | 300 Meters | 15 Km | 10 Km | 300 Meters | 10 Km | 300 Meters | 10 Km | 300 Meters |
Network port format | Ethernet Gigabit ports | Ethernet Gigabit ports | Ethernet Gigabit ports | Ethernet Gigabit ports | Neutrik Ethernet Gigabit ports | Neutrik Ethernet Gigabit ports | Neutrik Ethernet Gigabit ports | Neutrik Ethernet Gigabit ports |
Power Supply | 3-Pin Power Socket | 3-Pin Power Socket | PowerCON | PowerCON | PowerCON | PowerCON | PowerCON / 3-Pin Power Socket | PowerCON / 3-Pin Power Socket |
Dual power supply backup | No | No | No | No | No | No | Yes | Yes |
Control method | None | None | type-B USB | type-B USB | type-B USB | type-B USB | type-B USB / Ethernet | type-B USB / Ethernet |
Number of SFP modules come with the device | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 2 |
