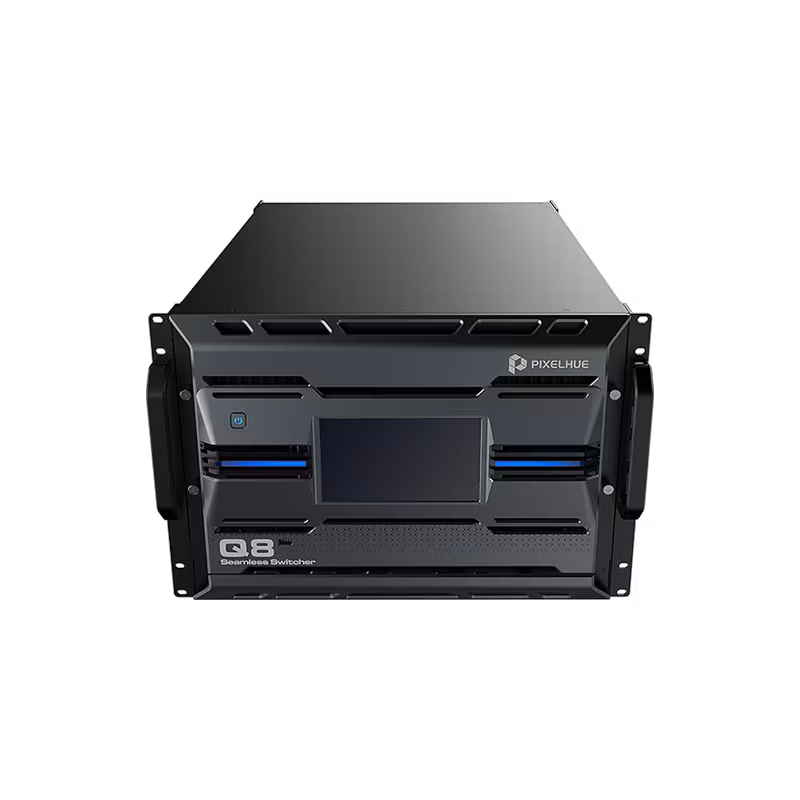

Pixelhue Q8

Pixelhue Q8 is a high-performance modular seamless switcher and presentation processor designed for large-scale live productions, broadcast environments, and massive LED display systems.

Built on a powerful VPU-based processing architecture, the Q8 delivers exceptional real-time 4K performance with outstanding scalability. Its modular card-based design allows flexible configuration of inputs and outputs, supporting a wide range of professional signal types including HDMI 2.0, DisplayPort 1.2, 12G-SDI, and ST2110 IP video.

With support for up to 72 × 4K inputs, 64 × 4K outputs, and up to 32 simultaneous 4K mixing layers, the Q8 provides the processing power required for the most demanding production environments.

Key Features

• Modular seamless switcher architecture

• Up to 72 × 4K input connectors

• Up to 64 × 4K output connectors

• Up to 48 concurrent 4K inputs

• Up to 16 concurrent 4K outputs

• Up to 32 real-time 4K mixing layers

• 8K video processing capability

• Support for HDMI, DP, 12G-SDI and ST2110

• Compatible with PixelFlow and U5 / U5 Pro controllers

Built for Large-Scale Productions

The Q8 is engineered to handle complex multi-screen productions with ease.

Its advanced processing architecture supports:

• True seamless switching

• Multi-layer video compositing

• Projection edge blending

• LCD bezel compensation

• Massive LED wall configurations

This makes the Q8 ideal for concert tours, large LED installations, broadcast studios, and immersive experiences.

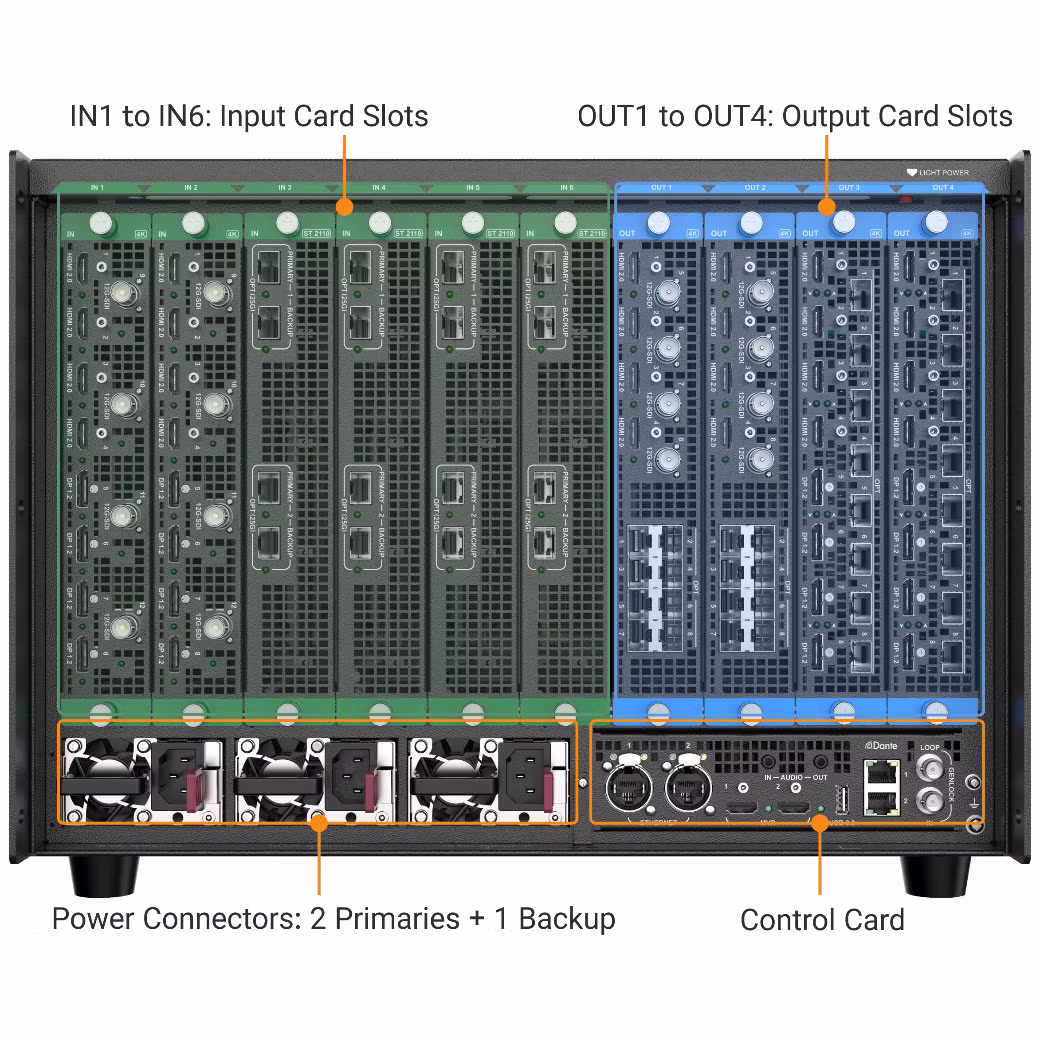

Modular System Design

The Q8 uses a flexible card-based architecture, allowing users to customize the switcher based on their production requirements.

Supported card types include:

Input cards

• HDMI 2.0

• DisplayPort 1.2

• 12G-SDI

• ST2110 IP (SFP25G)

Output cards

• HDMI 2.0

• Optical fiber outputs

• Various multi-connector configurations

This modular design enables the Q8 to scale from single-display workflows to massive multi-screen systems.

Advanced Layer Processing

The Q8 provides powerful compositing tools for professional live productions.

Capabilities include:

• Up to 32 simultaneous 4K mixing layers

• Picture-in-picture layouts

• Graphics overlays

• Keyframe animations

• Advanced keying effects

These features allow operators to create complex visual compositions during live events.

Flexible Control Options

The Q8 can be operated using multiple control methods:

• Built-in 7-inch touchscreen interface

• PixelFlow event management software

• Pixelhue U5 / U5 Pro event controllers

• Stream Deck integration

Multiple devices can be controlled from a single control system, simplifying complex production setups.
