NovaStar MCTRL700
- 348 EUR
- Contact to negotiate price

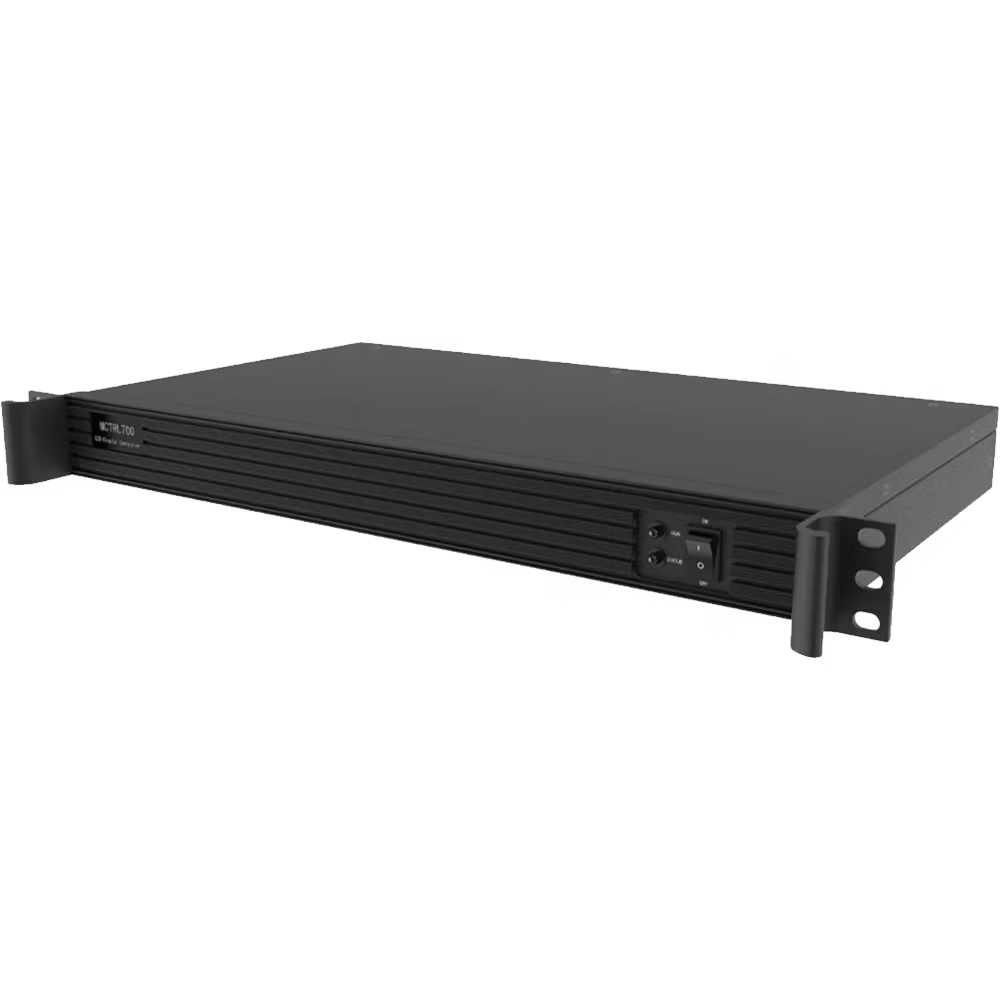

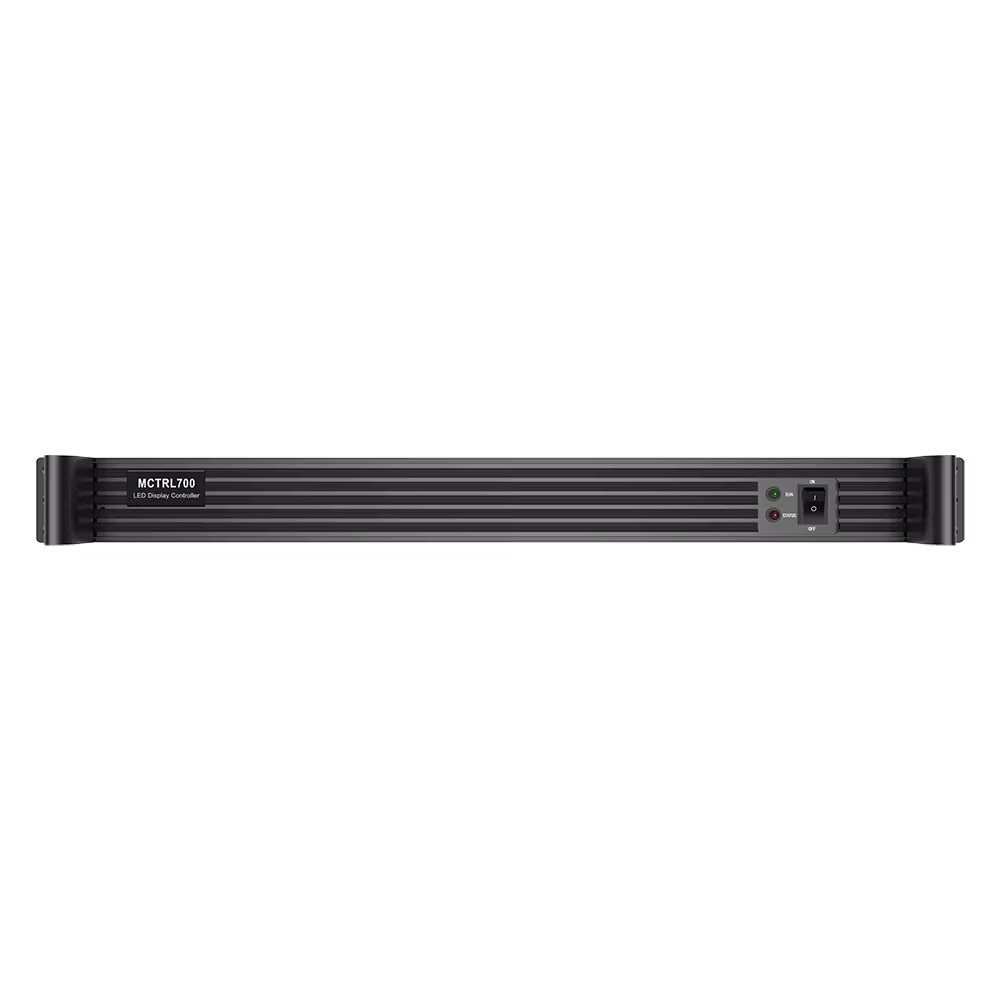

NovaStar MCTRL700 is an LED display controller. The maximum loading capacity of a single MCTRL700 is 1920×1200@60Hz.
Free delivery from Sweden
Shipped next business day
No Import Duties
Very few exceptions
High quality with EU warranty
For the best price on the market
Fast Support
Stock:
3
Article Number:
N-78-100-20
Supplier:
NovaStar

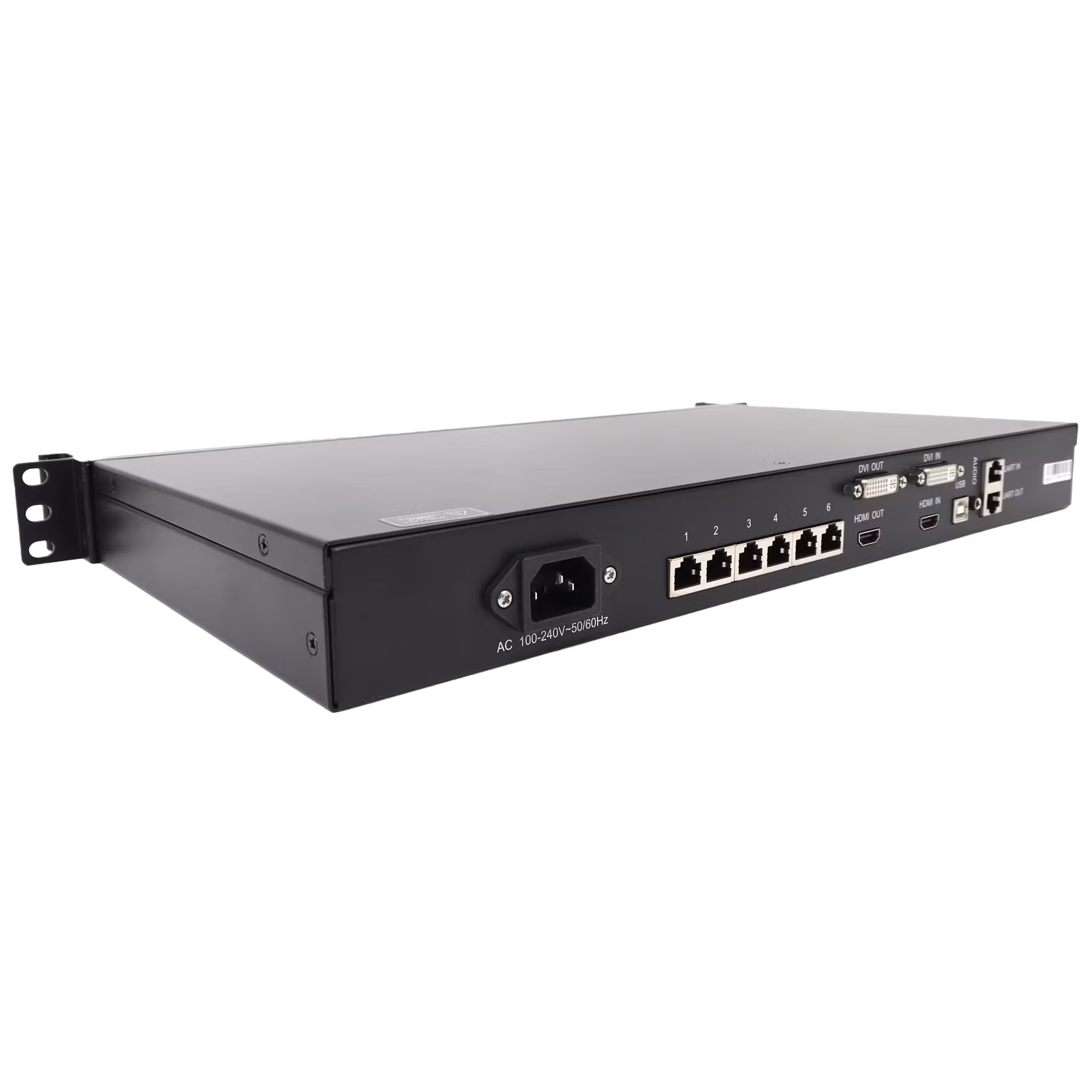

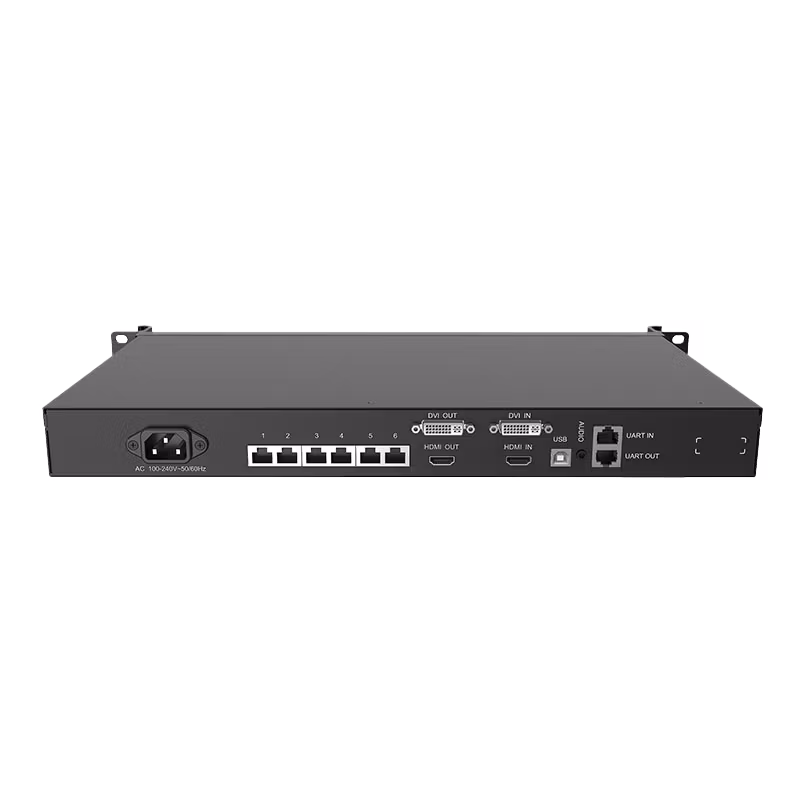

NovaStar MCTRL700 is an LED display controller that supports 1x DVI input, 1x HDMI input, 1x audio input, and 6x Ethernet outputs. The maximum loading capacity of a single MCTRL700 is 1920×1200@60Hz. It communicates with PC via Type-B USB port. Multiple MCTRL700 units can be cascaded via UART port.
The MCTRL700 can be mainly used in the rental and fixed applications, such as concerts, live events, security monitoring centers, Olympic Games and various sports centers.
Key Features
- 3x Input connectors
- 1x SL-DVI (IN-OUT)
- 1x HDMI 1.3 (IN-OUT)
- 1x AUDIO
- 6x Gigabit Ethernet outputs
- 1x Type-B USB control port
- 2x UART control ports Used for device cascading. Up to 20 devices can be cascaded.
- Pixel level brightness and chroma calibration Working with NovaLCT and NovaCLB, the controller supports brightness and chroma calibration on each LED, which can effectively remove color discrepancies and greatly improve LED display brightness and chroma consistency, allowing for better image quality.
Certifications: FCC, CE, IC
NovaStar LED Controller Comparison
Model | MCTRL300 | MCTRL600 | MCTRL660 | MCTRL660 Pro | MCTRL700 | MCTRL R5 | MCTRL4K |
Loading Capacity (pixel) | 1,300,000 | 2,300,000 | 2,300,000 | 2,300,000 | 2,300,000 | 4,140,000 | 8,800,000 |
Video Source Depth | 8bit | 8 / 10 / 12bit | 8 / 10 / 12bit | 8 / 10 / 12bit | 8bit | 8 / 10bit | 8 / 10 / 12bit |
Maximum Input | Max Width: 3840x600@60Hz Max Height: 548x3840@60Hz Min: 800x600@60Hz | Max Width: 3840x600@60Hz Max Height: 548x3840@60Hz Min: 800x600@60Hz | Max Width: 3840x600@60Hz Max Height: 548x3840@60Hz Min: 800x600@60Hz | Max Width: 3840x600@60Hz Max Height: 800x2560@60Hz Min: 800x600@60Hz | Max Width: 3840x600@60Hz Max Height: 548x3840@60Hz Min: 800x600@60Hz | Max Width: 3840x1080@60Hz Max Height: 800x3840@60Hz Min: 800x600@60Hz | Max Width: 7680x1080@60Hz Max Height: 1080x7680@60Hz Min: 800x600@60Hz |
Video Input | 1x DVI | 1x DVI 1x HDMI | 1x HDMI / DVI 1x HDMI LOOP 1x DVI LOOP | 1x DVI IN 1x DVI LOOP 1x HDMI IN 1x HDMI LOOP 1x 3G-SDI IN 1x 3G-SDI LOOP | 1x DVI 1x DVI OUT 1x HDMI 1x HDMI LOOP | 1x 6G-SDI 1x HDMI1.4 2x Dual DVI | 1x DP1.2 1x HDMI2.0 2x Dual DVI |
Audio Input | 1x 3.5mm Audio Port | 1x 3.5mm Audio Port HDMI Audio | 1x 3.5mm Audio Port HDMI Audio | None | 1x 3.5mm Audio Port HDMI Audio | None | None |
Control Method | 1x USB | 1x USB | 1x USB | 1x ETHERNET 1x USB IN 1x USB OUT | 1x USB RJ45 IN RJ45 OUT | 1x ETHERNET 1x USB IN 1x USB OUT | 1x USB 1x Network Port |
Output | 2x Network Port | 4x Network Port | 4x Network Port | 6x Network Port 2x Fiber Output | 6x Network Port | 8x Network Port 2x Fiber Output | 16x Network Port 4x Fiber Output |
Light Sensor | 1x Light Sensor Port | 1x Light Sensor Port | None | None | None | None | None |
LCD Control Panel | No | No | Yes | Yes | No | Yes | Yes |
LAN Debugging | No | No | No | Yes | No | Yes | Yes |
Hardware Brightness & Color Adjustment | No | No | Yes | Yes | No | Yes | Yes |
Low Latency | No | No | No | Yes | No | No | Yes |
3D | No | No | No | No | No | No | Yes |
Free Rotation | No | No | No | No | No | Yes (With A8s-N/A10s Plus-N) | No |
Mirror Image | No | No | No | Yes | No | No | No |
GENLOCK | No | No | No | Yes | No | Yes | Yes (Offset Adjustable) |
HDR | No | No | No | No | No | No | Yes |
Optical Fiber Port | No | No | No | Yes | No | Yes | Yes |
Sync Splice Mode | No | No | No | No | No | No | Yes |
Control Software | NovaLCT | NovaLCT | NovaLCT | NovaLCT | NovaLCT | NovaLCT | NovaLCT |
