NovaStar VX2000 Pro
- 3 450 EUR
NovaStar VX2000 Pro: Advanced LED control with 4K, low latency, and versatile connectivity. Ideal for professional displays. Shop now at NovaStar Shop EU.
Free delivery from Sweden
Shipped next business day
No Import Duties
Very few exceptions
High quality with EU warranty
For the best price on the market
Fast Support
Stock:
4
Article Number:
N-78-102-45
Supplier:
NovaStar

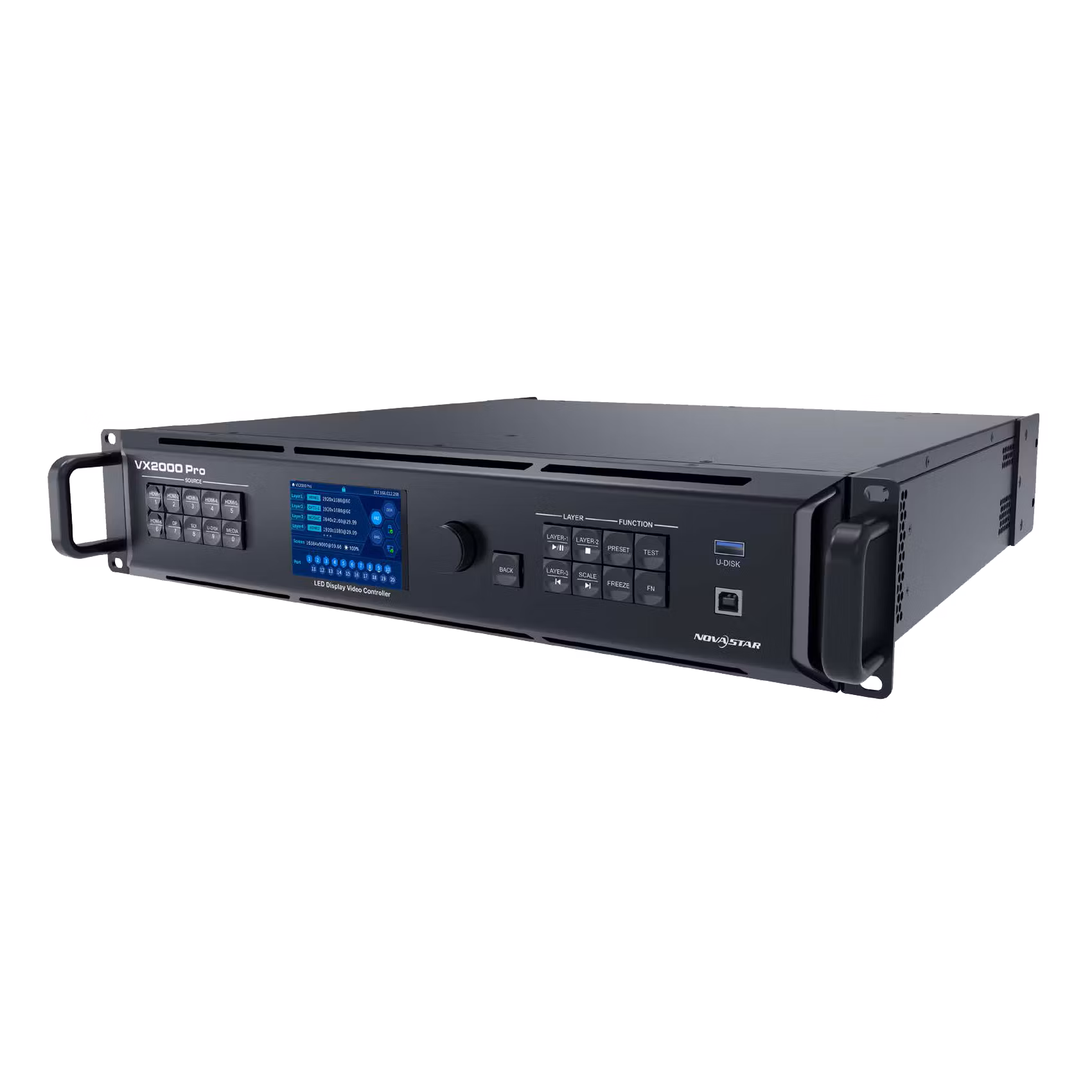

NovaStar VX2000 Pro is a cutting-edge all-in-one controller designed for seamless video processing and control. With its advanced capabilities and user-friendly design, this device is ideal for medium to high-end rental events, stage productions, and fine-pitch LED displays. Its robust construction and versatile features ensure excellent performance even in complex environments.
Key Features
Comprehensive Video Processing
- Supports up to 13 million pixels.
- Maximum width: 16,384 pixels; height: 8,192 pixels.
- 4K×2K@60Hz video input for stunning display quality.

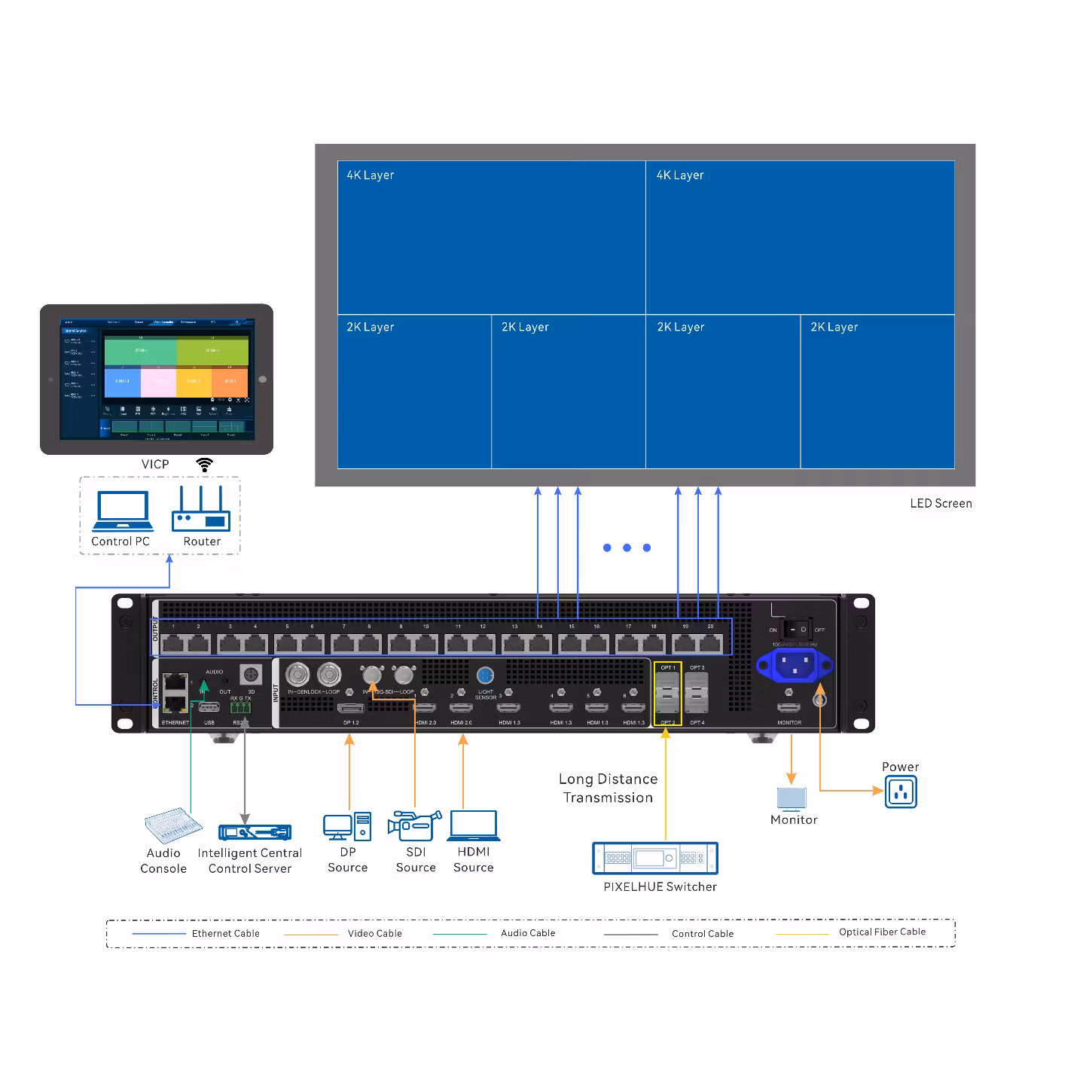

Versatile Connectivity

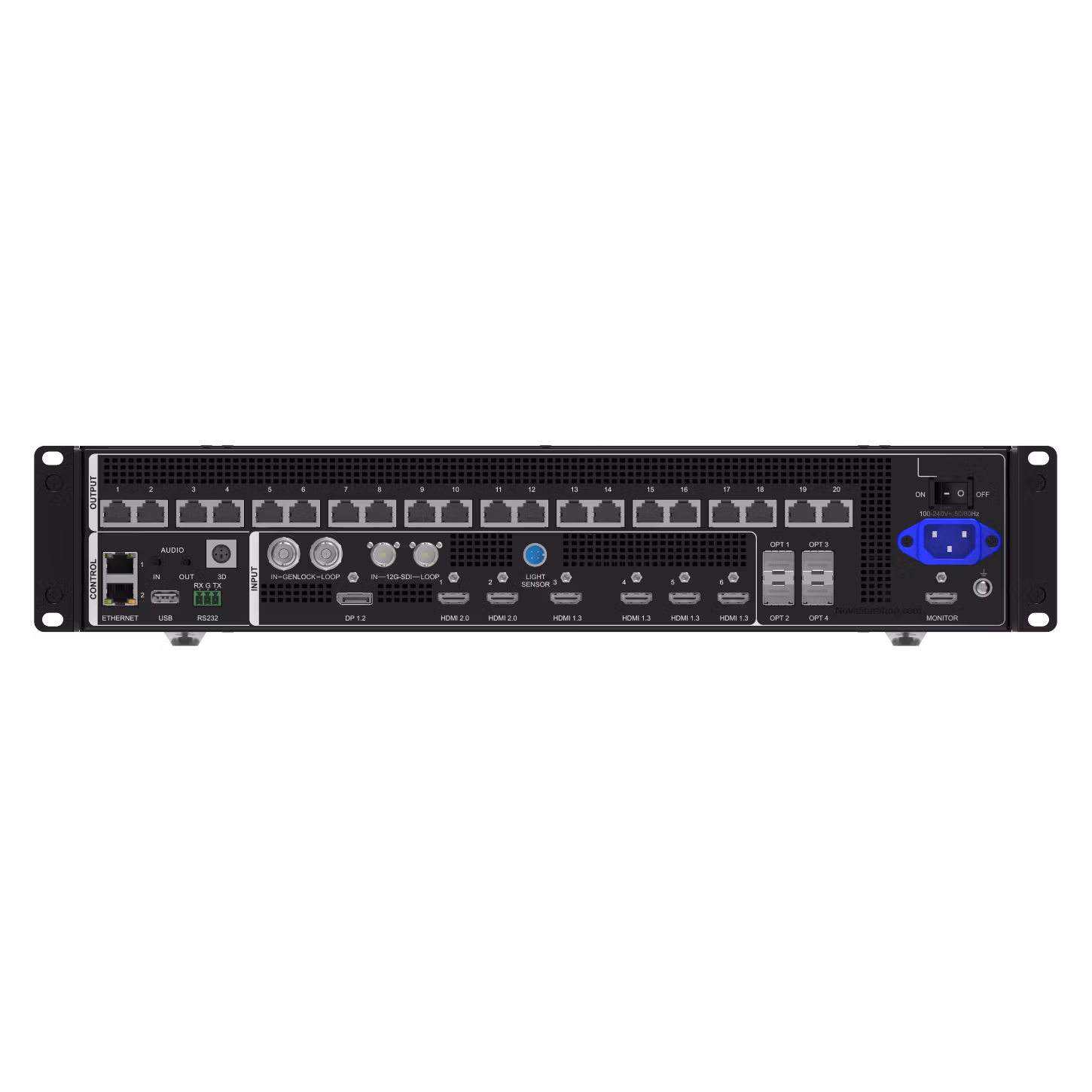

- Input ports: 1 DP 1.2, 1 HDMI 2.0, 4 HDMI 1.3, 1 3G-SDI, and 2 optical fiber ports.
- Output ports: 20 Gigabit Ethernet ports, 2 additional fiber outputs, and 1 HDMI monitoring port.
Enhanced Display Flexibility
- Support for up to 12 layers, adjustable in size, position, and priority.
- OSD features: Text, image, weather, clock, and more.
- 3D functionality for immersive visual effects (requires compatible 3D glasses).
Customizable and Efficient Operations
- Save and load up to 256 user-defined presets with one-click accessibility.
- Pixel-level brightness and chroma calibration for color consistency.
- Multiple image scaling modes: Full screen, pixel-to-pixel, and custom.
Low Latency and Synchronization
- Delay as low as <1ms with low latency mode.
- External or internal Genlock ensures synchronized outputs for all connected units.
Multiple Operating Modes
- Operates as a video controller, fiber converter, or in Bypass mode.

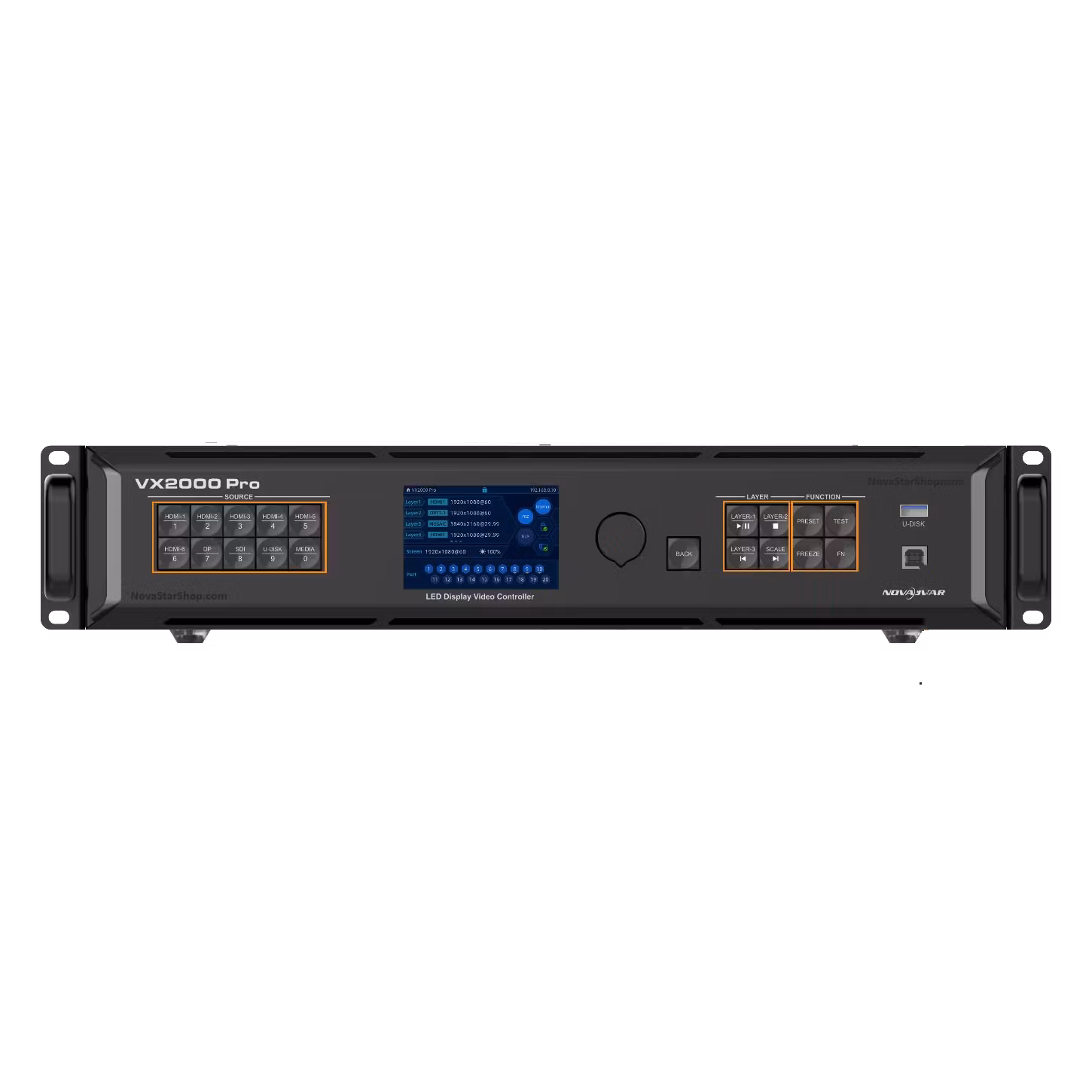

User-Friendly Control Options
- Manage via front panel, NovaLCT, Unico, VICP app, or remote control.
Durable and Portable Design
- Industrial-grade casing and compact dimensions (482.6mm × 409.0mm × 94.6mm) with a net weight of 7 kg.
Backup and Recovery
- End-to-end redundancy between devices, input sources, and Ethernet ports.
- Data auto-restoration after power loss.
Comparison Table: VX Series vs. VX Pro Series
| Feature | VX400 | VX400 Pro | VX600 | VX600 Pro | VX1000 | VX1000 Pro | VX2000 Pro |
|---|---|---|---|---|---|---|---|
| Maximum Pixel Capacity | 2.6 million | 2.6 million | 3.9 million | 3.9 million | 6.5 million | 6.5 million | 13 million |
| Maximum Input Resolution | 1920×1200@60Hz (HDMI 1.3) | 4096×2160@60Hz (HDMI 2.0) | 1920×1200@60Hz (HDMI 1.3) | 4096×2160@60Hz (HDMI 2.0) | 3840×1080@60Hz or 3840×2160@30Hz | 4096×2160@60Hz (HDMI 2.0) | 4096×2160@60Hz (DP 1.2, HDMI 2.0) |
| Ethernet Ports | 4 | 4 | 6 | 6 | 10 | 10 | 20 |
| Fiber Outputs | 2 | 2 | 2 | 2 | 2 | 2 | 4 |
| Number of Layers | 2 | 6 | 3 | 6 | 3 | 6 | 12 |
| USB Playback | Not supported | Supported (USB 3.0) | Not supported | Supported (USB 3.0) | Not supported | Supported (USB 3.0) | Supported (USB 3.0) |
| Low Latency | 20 lines (ByPass mode) | 0-frame (ByPass mode) | 20 lines (ByPass mode) | 0-frame (ByPass mode) | 20 lines (ByPass mode) | 0-frame (ByPass mode) | 0-frame (ByPass mode) |
| 3D Support | Not supported | Third-party 3D emitter | Not supported | Third-party 3D emitter | EMT200 3D emitter | Third-party 3D emitter | Third-party 3D emitter |
| Control Options | Front panel, NovaLCT, V-Can | Front panel, NovaLCT, Unico, VICP | Front panel, NovaLCT, V-Can | Front panel, NovaLCT, Unico, VICP | Front panel, NovaLCT, V-Can | Front panel, NovaLCT, Unico, VICP | Front panel, NovaLCT, Unico, VICP |
| OPT Fiber Ports (Self-Adaptive) | 1 (Input or Output) | 1 (Input or Output) | 1 (Input or Output) | 1 (Input or Output) | 1 (Input or Output) | 1 (Input or Output) | 2 (Input or Output) |
| HDMI Input | HDMI 1.3 | HDMI 2.0 & HDMI 1.3 | HDMI 1.3 | HDMI 2.0 & HDMI 1.3 | HDMI 1.4 & DVI | HDMI 2.0 & HDMI 1.3 | 2x HDMI 2.0 & 4x HDMI 1.3 |
| DisplayPort Input | Not supported | Not supported | Not supported | Not supported | Not supported | Not supported | DP 1.2 |
| Maximum Width/Height | 10,240 × 8,192 pixels | 10,240 × 8,192 pixels | 10,240 × 8,192 pixels | 10,240 × 8,192 pixels | 10,240 × 8,192 pixels | 10,240 × 8,192 pixels | 16,384 × 8,192 pixels |
| Preset Storage | 10 presets | 256 presets | 10 presets | 256 presets | 10 presets | 256 presets | 256 presets |
| Power Consumption | 35W | 41W | 35W | 41W | 43W | 43W | 80W |
| Weight | 4 kg | 3.8 kg | 4 kg | 3.9 kg | 4 kg | 3.9 kg | 6.5 kg |
