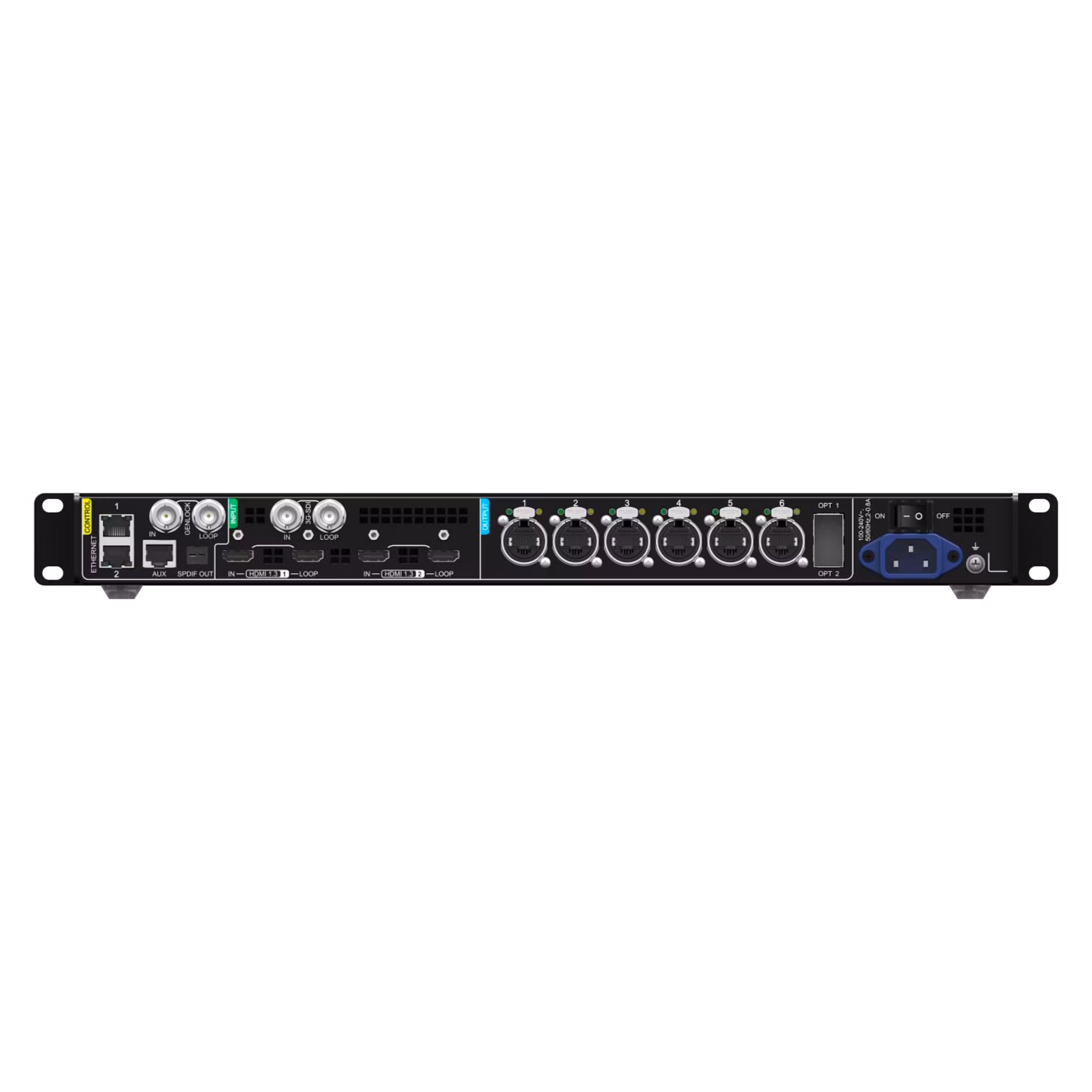

NovaStar MX20
- 1 452 EUR
- Contact to negotiate price
NovaStar MX20, part of the COEX series, offering an all-in-one solution for LED display control. Video processing and control in a single compact unit.
Free delivery from Sweden
Shipped next business day
No Import Duties
Very few exceptions
High quality with EU warranty
For the best price on the market
Fast Support
Article Number:
N-78-500-22
Supplier:
NovaStar
NovaStar MX20 is a powerhouse in the COEX series, offering an all-in-one solution for LED display control. This controller seamlessly integrates video processing and control in a single compact unit, designed to elevate your visual experience. Explore the world of precision and flexibility with MX20.
Key Features
Versatile Connectivity: MX20 boasts 2x HDMI 1.3 and 1x 3G-SDI inputs, ensuring compatibility with various video sources.
Advanced Outputs: Enjoy a multitude of output options, including 6x Gigabit Ethernet ports (load capacity up to 3.9 million pixels), 2x 10G optical ports, and 1x SPDIF digital audio port.
Comprehensive Controls: MX20 offers versatile control options, including Genlock signal input, Ethernet control ports, and an Auxiliary port, providing unparalleled flexibility.
Advanced Layering: Unleash creativity with three independent layers, supporting layer priority adjustments in Z order.
Image Scaling Mastery: MX20 supports four image scaling modes - custom, pixel to pixel, snap to canvas, and fill screen, ensuring optimal display adaptability.
Precise Color Correction: Achieve perfection with 14Ch color correction, allowing precise adjustments to hue, saturation, and brightness for a stunning visual experience.
Full-Grayscale Calibration: Utilize NovaStar's high-precision calibration system and the C3200 scientific-grade camera for unique calibration coefficients, ensuring uniformity and dramatically improving image quality.
Low Latency Performance: Experience minimal latency with 0-frame latency in Send-Only Controller mode and 1-frame latency in All-In-One Controller mode. Additional latency can be adjusted as needed.
No Rectangle Restriction: MX20 offers freedom for irregular screens with no rectangle restrictions. Blank pixels are excluded from capacity calculations, providing flexibility in resolution planning.
Frame Rate Adaptability: Adapt seamlessly to various video input frame rates, supporting decimal frame rates with a fine-tuning step size as small as 0.01 Hz.
Dual Working Modes: Choose between the All-In-One Controller and Send-Only Controller modes, each offering unique advantages. Reduce latency by one frame in Send-Only mode and unlock layer and scaling functions in All-In-One mode.
System Monitoring: Stay in control with active monitoring of device and screen status. Receive instant notifications for any faults or alarms, ensuring a reliable performance.
VMP Software Integration: Connect effortlessly to NovaStar's Vision Management Platform (VMP) software for easy operations and smart device management.
Cascading Control via Ethernet: Simplify deployment with Gigabit Ethernet control ports supporting TCP/IP protocol and star topology, eliminating the need for additional switches or routers.
Function Limitations:
- Frame Rate Adaptive and Full Grayscale Calibration functions require compatibility with A10s Pro receiving cards and specific driver ICs.
- Low latency and Genlock are mutually exclusive. For low latency, ensure vertical cabinet placement with shared Y coordinates.
Certifications: CE, FCC, IC
NovaStar COEX Comparison
| Controller / Receiving Card | Function | MX40 Pro, A10s Pro | MX30, A10s Pro | MX30, Other AXs | MX20, A10s Pro | MX20, Other AXs | KU20, A10s Pro | KU20, Other AXs |
| Hardware | Inputs | 3xHDMI 2.0(IN+LOOP) 1x DP 1.2 1x12G SDI (IN+LOOP) | 1x HDMI 2.0 1x HDMI 1.4 1x DP1.1 2x 3G-SDI | 1x HDMI 2.0 1x HDMI 1.4 1x DP1.1 2x 3G-SDI | 2x HDMI 1.3 (IN+LOOP) 1x 3G-SDI (IN+LOOP) | 2x HDMI 1.3 (IN+LOOP) 1x 3G-SDI (IN+LOOP) | 1x HDMI 1.3 | 1x HDMI 1.3 |
| Outputs | 20x 1Gbps Neutrik | 10x 1Gbps Neutrik | 10x 1Gbps Neutrik | 6x 1Gbps | 6x 1Gbps | 6x 1Gbps | 6x 1Gbps | |
| OPT | 4x 10Gbps SFP+ | 2x 10Gbps SFP+ | 2x 10Gbps SFP+ | 2x 10Gbps SFP+ | 2x 11Gbps SFP+ | 1x 10Gbps SFP+ | 1x 10Gbps SFP+ | |
| Genlock | 1x IN 1x LOOP | 1x IN 1x LOOP | 1x IN 1x LOOP | 1x IN 1x LOOP | 1x IN 1x LOOP | - | - | |
| S/PDIF OUT | Reserved | |||||||
| Communication | TCP/IP protocol, RJ45 interface RS232 protocol, RJ45 interface (Central Control System) | |||||||
| Max Resolution | 4096x2160@60Hz | 4096x1080@60Hz | 4096x1080@60Hz | 1920x1200@60Hz | 1920×1200@60Hz | 1920×1200@60Hz | 1920×1200@60Hz | |
| Max Width | 8192 | 8192 | 8192 | 3840 | 3840 | 4096 | 4096 | |
| Max Height | 8192 | 7680 | 7680 | 2560 | 2560 | 4096 | 4096 | |
| Frame Rates | 23.97~120/144/240Hz custom, step is 0.01Hz | 23.98~120Hz custom, step is 1Hz | 23.98~120Hz custom, step is 1Hz | |||||
| Input Bit Depth | 8 / 10 / 12bit | 8 / 10bit | 8 / 10bit | 8 / 10bit | 8 / 10bit | 8 / 10bit | 8 / 10bit | |
| Color Space / Chroma Subsampling | RGB 4:4:4 YCbCr 4:4:4 YCbCr 4:2:2 | |||||||
| Color Gamut | Rec.709, DCI-P3, Rec.2020 Custom color gamut | |||||||
| Dynamic Range | SDR, HDR10-ST2084, HDR10-ST2086, HLG | SDR，HDR10-ST2084, HDR10-ST2086, HLG | SDR，HDR10-ST2084, HDR10-ST2086, HLG | SDR，HDR10-ST2084, HDR10-ST2087, HLG | SDR，HDR10-ST2084, HDR10-ST2088, HLG | SDR | SDR | |
| Controller Loading Capacity (8Bit & 60Hz) | 9,000,000 | 6,500,000 | 6,500,000 | 3,900,000 | 3,900,000 | 3,900,000 | 3,900,000 | |
| Output Width Range | 800~16384 | 800~16384 | 800~16384 | 800~16384 | 800~16384 | 800~16384 | 800~16384 | |
| Output Height Range | 600~16384 | 600~16384 | 600~16384 | 600~16384 | 600~16384 | 600~16384 | 600~16384 | |
| Layers (All-in-one Mode) | 4 | 3 | 3 | 3 | 3 | 1 | 1 | |
| No Rectangle Calculating Limitation | Yes (blank panels will not occupy loading capacity) | |||||||
| Output Bit Depth | 8bit,10bit, 12bit | 8bit,10bit | 8bit,10bit | 8bit,10bit | 8bit,10bit | 8bit,10bit | 8bit,10bit | |
| 8 Bit & 60Hz Single Output Loading Capacity | 659,722 | 659,722 | 659,722 | 659,722 | 659,722 | 659,722 | 659,722 | |
| 10 Bit & 60Hz Single Output Loading Capacity | 494,792 | 494,792 | 329,861 | 494,792 | 329,861 | 494,792 | 329,861 | |
| 12 Bit & 60Hz Single Output Loading Capacity | 329,861 | - | - | - | - | - | - | |
| Input Color Adjustment | Black level, Contrast, Saturation, Hue, Shadow, Highlight | |||||||
| 14CH Color Correction | Yes | Yes | Yes | Yes | Yes | - | - | |
| Color Replacement | Yes | - | - | - | - | - | - | |
| 3D LUT | Support cube file with 17x17x17 | - | - | - | - | - | - | |
| Color Curve Editor | Yes | - | - | - | - | - | - | |
| Output Color Gamut Management | Original color gamut, Standard color gamut(Rec.709, DCI-P3, Rec.2020)，Custom color gamut | |||||||
Improvement | Precise Grayscale | Yes | Yes | Yes | Yes | |||
| 22 Bit+ | Yes | Yes | Yes | Yes | ||||
| Color Management | Yes | Yes | Yes | Yes | ||||
| Brightness / Chroma Calibration | Yes | Yes | Yes | Yes | Yes | Yes | Yes | |
| Full Grayscale Calibration | Yes | Yes | - | Yes | - | Yes | - | |
| Multi-Mode | Yes | Yes | - | Yes | - | Yes | - | |
| Thermal Compensation | Yes | Yes | Yes | Yes | - | Yes | - | |
| Dynamic Booster | Yes | - | - | - | - | - | - | |
| Brightness Overdrive | Yes | - | - | - | - | - | - | |
Shooting Adaptation | Sync (Active source, Genlock, Internal) | Yes | Yes | Yes | Yes | Yes | Except Genlock | Except Genlock |
| Frame Multiplication / Frame Multiplexing | Support 1~6 times multiplication | - | - | - | - | - | - | |
| Sync Phase Offset | Support angle, fraction, absolute | - | - | - | - | - | - | |
| Shutter Fit | Support 22.5~360° Adjustment accuracy is 0.001° | - | - | - | - | - | - | |
| Low Latency | Yes | |||||||
| Secondary Development Integration | HTTP | Yes | ||||||
| SNMP | Yes | |||||||
| Art-Net | Yes | |||||||
| Private Protocol | Customized Support | |||||||
